Why a Disc Brake Touring Bike?
The Disc Trucker shares the same reputation as the Long Haul Trucker: it is one of the best and most affordable drop-bar touring bikes on the market. However, sometimes a combination of load, climate, and terrain demands stronger braking power than standard rim brakes on an LHT can provide.
This is where the redesigned Disc Trucker comes into play. It offers reliable braking performance and a variety of useful attachment points. Shorter chainstays increase the stiffness and maneuverability of the Disc Trucker in corners. Additionally, an improved fit and handling under full load, along with sealed quick-release axles, allow tool-free removal and attachment. The Disc Trucker is ready to help you tackle – or avoid – your daily challenges.
Features:
-
Dynamo cable routing on the fork steerer tube, plus three-pack mounts on the fork and all attachment points needed for racks, fenders, bottle cages, and more
-
12mm thru-axle for a stiffer ride and increased stability when fully loaded
-
Shortened seat tube and slightly angled top tube for better stand-over height and increased stack height for a more upright and comfortable seating position on longer tours
-
Equipped with the Truck Stop Bar and tubeless-compatible ExtraTerrestrial tires for reliable handling and traction
-
Flat-mount disc brakes
-
Brake mounting on seat stays
-
Frame sizes 42–54 cm available with 26-inch wheels, and sizes 56–64 cm with 700c wheels
-
Tire clearance for 26” x 2.1” tires with or without fenders, or 700c x 47 mm with or without fenders
Frame Set Specifications:
-

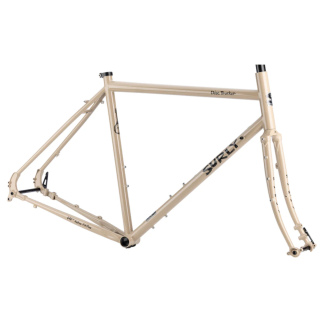

Frame: Surly Disc Trucker – 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
-
Frame color: Grandpa's Khakis
-
Fork: Surly Disc Trucker – 100% Surly Chromoly Steel, Natch tubing, double-butted conical fork blades, lugged, E.D. coated
-
Seat post clamp: Surly stainless steel, 30.0 mm
-
Rim/tyre size: 26 x 2.0" or 700c x 47 mm
-
Frame construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
-
Fork construction: 4130 Chromoly, Natch tubing, double-butted conical blades, lugged, E.D. coated
-
Rigid fork length 26": 376 mm / 700c: 390 mm
-
Fork offset: 45 mm (26" & 700c)
-
Axle-to-crown distance: 26": 376 mm / 700c: 390 mm
-
Rear axle standard: 12x142 (axle included)
-
Rear axle size: Ø12 x 162 mm, TP=1.5, TL=12
-
Rear brake: Disc – Flat Mount 140/160 mm (max. 180 mm) – 25 mm thick mount
-
Front brake: Disc – Flat Mount 140/160 mm (max. 180 mm) – 25 mm thick mount
-
Headset: EC34/28.6 top | EC34/30 bottom
-
Front hub width: 12x100 (axle included)
-
Front axle size: Ø12 x 118.5 mm, TP=1.5, TL=12
-
Head tube: Ø28.6 mm (1-1/8")
-
Cone diameter for fork: Ø30 mm (1-1/8")
-
Stem clamp: Ø28.6 mm (1-1/8")
-
Seat post: Ø27.2 mm
-
Dropper post compatible: No
-
Seat clamp: Ø30 mm
-
Front derailleur: Bottom-pull (Ø28.6 mm)
-
Bottom bracket: 68 mm BSA, threaded (1.37" x 24 TPI)
-
Crankset: Max chainring options: 1x (road): 47 teeth / 2x (road): 34/50 teeth / 3x (road): 33/47/56 teeth
-
Accessories mounts: Spoke holders on seat stays, including removable stand plate on complete bikes
-
Bottle cages: 3 standard
-
Fork mounts: 2 three-pack mounts, top, bottom, and center fork mounts (screw-mounted)
-
Fender mounts front: Yes
-
Fender mounts rear: Yes
