The Mini-Max is the middle model in the range, offering the best features of both the Cargo and Mini models. Its shorter wheelbase provides more bike-like handling, resulting in a tighter turning radius and improved maneuverability. Although the rear rack does not have horns like the Cargo, it remains equipped with extender-bar compatibility and can still carry impressive loads!
The fact that the front wheel is positioned more centrally on the rear rack positively influences steering and handling, although stability under heavy loads is slightly lower than on the Cargo. The Mini-Max is aimed at riders who appreciate more stylish, agile cornering and a more compact parking space, and who do not necessarily need to regularly utilize the maximum load capacity.
The Mini-Max V3 is designed for 55 mm (2.15") wide tires at the front and rear. The benefits of larger tires include the ability to run at lower air pressures, which significantly cushions the ride between rider and ground. This enhances comfort and control on all terrains—uneven surfaces, gravel, or cobblestones. While the semi-slick profile of these tires slightly increases rolling resistance, it mainly boosts grip and stability and reduces the risk of punctures.
The frame and fork system have also been updated to accommodate 15 x 100 mm front and 12 x 142 mm rear axles. Although these axle standards were first used in downhill mountain bikes in the late 1990s, most modern disc-brake bikes now adopt them. For our cargo bikes, this makes sense: the axle runs through a closed hole in the frame and fork, then through the hub and is screwed directly into the dropout on the other side. This system significantly enhances stiffness and strength under braking and load conditions, while also reducing the risk of incorrect assembly and brake disc rubbing.
This Mini-Max is equipped with the SRAM Apex groupset. Apex is SRAM’s dedicated gravel groupset, a 1×11 system with wide gear range that is very user-friendly. It features a long derailleur capable of handling cassettes up to 42 teeth, and the X-HORIZON design reduces shifting forces and increases comfort. Additionally, it includes SRAM CAGE LOCK, making tire changes and maintenance much easier.
Details:
-
Manufacturer: OMNIUM
-

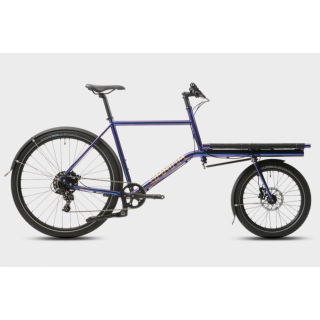

Model: "Mini-Max V3" Cargo Bike
-
Color: Blurple
-
Brakes: SRAM Level TL, IS Mount, 160mm disc brake V+H
-
Shifter: SRAM Apex 11 SPD
-
Chain: KMC 11 SPD Chain EPT
-
Cassette: SRAM PG-1130 11-42T
-
Alternate Cassette: Shimano SLX 11-40T
-
Chain: KMC 11SPD
-
Stem: 3D forged 6061 aluminum, 80mm standard, 31.8mm, matte black
-
Handlebar: Riser, 6061 aluminum, 700mm width, 15mm rise, matte black
-
Seatpost: 31.6mm 6061 aluminum, T6, 15mm setback, matte black
-
Grips: Omnium Lock-On, black
-
Crankset: Driveline, 42T CNC Narrow Wide chainring
-
Bottom Bracket: FSA, Square Taper, 68mm BSA
-
Headset: VP Components, integrated
-
Saddle: Omnium standard saddle
-
Tires: Schwalbe BIG BEN Plus 55-622 (700x55mm) & 55-406 (20x2.15")
-
Wheels: Omnium by DT Swiss Cargo Wheelset
-
Kickstand: Omnium double-leg kickstand
-
Pedals: Cast metal platform pedals
-
Fenders: WiFi 60mm matte black
-
Available sizes: S, M, L, XL
-
Fender: WiFi 60mm wide matte black
-
Weight: Complete bike weighs 19kg
-
Maximum load: 85kg
-
Maximum total weight including rider: 150kg
-
Rack size: 70cm x 50cm, aluminum
The Omnium cargo bikes are delivered in two large boxes and are about 80% pre-assembled. For final assembly, we recommend a professional workshop. Final assembly in our showroom is available at an extra cost and includes inspection and adjustment within 3 months.
We can configure and arrange other versions, colors, and sizes of the Omnium Mini-Max or other Omnium models for you based on your needs and availability. Please email us at: webshop@bike-punk.com.
